What is the correct way to fold blueprints?

The standard method for folding blueprints is accordion folding, also called fan folding. Starting from the right side of the drawing, fold the sheet in 8-to-9 inch panels, alternating direction with each fold so the sheet fans like an accordion. The final fold should leave the title block facing outward on the top panel so the drawing can be identified without unfolding. This allows plan sets to be stored in binders, filing cabinets, or carried in the field while remaining quickly accessible.

What is the correct way to roll blueprints?

To roll blueprints correctly, lay the sheet face-down (printed side facing inward) and roll from one short edge toward the other, keeping tension even across the width. The roll diameter should be at least 2 to 3 inches to avoid tight curvature that creates curl memory. Secure the roll with a rubber band or paper band — never tightly enough to dent the print. Place the roll in a rigid mailing tube for shipping or storage. Professional print shops such as Azul Prints roll all 24×36 and larger prints before shipping.

Why do professional print shops roll blueprints instead of folding them?

Professional print shops roll blueprints because rolling preserves print quality, prevents permanent crease lines, reduces the risk of tearing along fold lines, and produces cleaner results when plans are later scanned or copied. Folded blueprints often scan poorly because the creases create shadows and distortion that affect readability. For permit submissions and client deliverables, rolled prints are the professional standard.

What size tube should be used for rolled blueprints?

For standard 24×36 (ARCH D) blueprints, a tube with an inner diameter of at least 2 inches is recommended. Tubes that are too narrow force the roll into a tight curl that creates curl memory — a permanent tendency for the paper to curl back toward the rolled shape even after unrolling. For ARCH E 36×48 or larger prints, a tube inner diameter of 3 inches or more is preferable. The tube length should match or slightly exceed the shorter dimension of the print.

How do you keep rolled blueprints from unrolling?

Rolled blueprints are best secured with a wide rubber band, a paper band, or a strip of kraft tape wrapped loosely around the roll. Never use tight rubber bands that dig into the print surface. In a tube, the roll is held naturally by the tube walls. At the job site, rolled plans can be temporarily held open with blueprint weights, rocks, or by clipping two corners to a board.

How do building departments want blueprints submitted — rolled or folded?

Most US building departments accept blueprints either rolled or folded, but many prefer or require rolled submissions because they are easier to handle, scan, and archive. Some jurisdictions specify that permit drawings must be submitted rolled. Always check your local building department's submission requirements before preparing your permit set. If in doubt, rolled is the safer choice.

📋 Blueprint Handling Guide

How to fold or roll
blueprints

Q: Should blueprints be folded or rolled?

It depends on the use case. Rolling is the professional standard for shipping, client delivery, permit submissions, and archival storage because it preserves print quality and prevents permanent creases. Folding is acceptable for short-term job-site use where quick field access is more important than long-term preservation. For any blueprint that will be shipped, scanned, submitted to a building department, or stored long-term, rolling is strongly preferred.

Q: Can folded blueprints be scanned?

Folded blueprints can technically be scanned, but the results are often poor. Fold creases create physical ridges that prevent the paper from lying flat on a scanner bed, resulting in shadows, distortion, and gaps in the scanned image. For blueprints that will need to be scanned or digitized — for as-built documentation, archival purposes, or reuse — rolled storage produces significantly better scan quality.

Contractors, architects, and engineers handle blueprints every day — but improper folding or rolling can lead to damaged plans, poor scans, rejected permit submissions, and costly reprints. This guide explains when to fold, when to roll, and exactly how professionals do both.

📅 Updated January 2026 ⏱ 5-minute read 🎯 Written for contractors, architects, and engineers

Quick Answer

Fold or roll — when to use each

The short answer: roll for shipping, archiving, and permit submissions. Fold for short-term job-site use.

Rolling is the professional standard because it preserves print quality, prevents permanent crease lines, and produces clean results when plans need to be scanned or copied later. Folding trades preservation for convenience — it's practical when crews need quick access to plans in the field, but it permanently damages the paper.

✓ Roll when…

Preservation matters

Shipping, permit submissions, client deliverables, archival storage, or any plan that will be scanned, copied, or reused.

≈ Fold when…

Convenience matters

Short-term job-site reference, field use by crews, or temporary storage in a binder when the plans won't need scanning.

Side-by-Side Comparison

Folding vs. rolling: full comparison

Here's how the two methods compare across every common use case for construction professionals.

Use Case	Folding	Rolling
Daily job-site reference	✓ Practical	⚠ Less convenient
Shipping via UPS or FedEx	✗ High damage risk	✓ Best practice
Permit set submission	⚠ Check local requirements	✓ Accepted everywhere
Scanning or digitizing	✗ Creases cause distortion	✓ Clean scan results
Client deliverables	⚠ Not professional standard	✓ Professional standard
Archival / long-term storage	✗ Creases degrade over time	✓ Preserves print quality
Binder or file cabinet storage	✓ Fits standard binders	⚠ Requires tube storage
Re-printing if damaged	⚠ Folding accelerates wear	✓ Longer print lifespan

Method 1

How to fold blueprints — accordion method

The accordion fold (also called fan fold or Z-fold) is the industry-standard method for folding large-format construction drawings. It keeps the title block visible and allows plans to be stored in binders or file cabinets without full unfolding.

Step-by-step accordion folding instructions

1

Orient the sheet Place the blueprint face-up on a flat surface in landscape orientation. The title block should be in the bottom-right corner.
2

Make the first fold Fold the right edge toward the left, creating a panel approximately 8 to 9 inches wide. Crease firmly along the fold line.
3

Accordion fold across the width Fold the panel back in the opposite direction, creating another 8–9 inch panel. Continue alternating direction across the full width of the sheet — like a fan or accordion.
4

Fold vertically to final height Once the sheet is fully folded horizontally, fold vertically (top to bottom) in two or three folds to a final height of approximately 9 inches — to fit a standard binder or filing cabinet drawer.
5

Verify title block is visible The title block — showing the project name, drawing number, scale, and revision — should face outward on the top panel. This lets you identify any drawing without unfolding it.

💡

Pro tip: For a 24×36 sheet, four horizontal accordion panels of 9 inches each fold down to 9×9 inches — perfect for a standard 3-ring binder with the title block facing out.

When accordion folding makes sense

Field crews carrying plans on an active job site
Storing plan sets in binders for regular reference
Temporary storage in a truck or job box
Plans that will be reprinted if they wear out anyway

Limitations of folding

Folding introduces permanent crease lines that cannot be removed. Once creased, the paper weakens along fold lines and will eventually tear with repeated unfolding. Scans of folded blueprints consistently produce poor quality — the ridge created by each crease blocks light or creates shadows on flatbed scanners and produces distortion on large-format roll scanners.

For any blueprint that will be submitted to a building department, delivered to a client, or needs to be scanned, do not fold it.

Method 2

How to roll blueprints — the professional standard

Rolling is the default method used by professional print shops, architectural firms, and engineering offices for storing and shipping large-format drawings. Done correctly, rolled plans can be stored for years without degradation.

Step-by-step rolling instructions

1

Place the sheet face-down Lay the blueprint printed-side down on a clean flat surface. Rolling with the print facing inward protects the surface from abrasion and scuffing.
2

Roll from one short edge For a 24×36 sheet, begin rolling from the 24-inch edge. Keep consistent tension across the full width as you roll — uneven tension creates a cone shape that won't fit in a tube.
3

Maintain a roll diameter of at least 2 inches Tighter rolls create curl memory — a permanent tendency for the paper to curl back even after unrolling. A 2–3 inch diameter is ideal for standard bond blueprints.
4

Secure loosely Wrap with a paper band, rubber band, or loose strip of kraft tape. Never band tightly enough to dent or crease the surface of the print.
5

Store or ship in a rigid tube For shipping, use a rigid mailing tube with end caps. The tube inner diameter should be at least 2 inches for ARCH D, 3 inches for ARCH E. Tubes protect prints from crushing, moisture, and bending.

Tube sizing guide

ARCH D 24×36: Tube inner diameter ≥ 2 inches, length ≥ 25 inches
ARCH E 36×48: Tube inner diameter ≥ 3 inches, length ≥ 37 inches
Multi-sheet rolls: Increase tube diameter by ½ inch per additional 5 sheets

📦

How Azul Prints ships your order: Every order is printed on professional large-format bond, rolled printed-side inward, placed in a rigid tube with end caps, and shipped via UPS. You don't need to worry about any of this — it arrives job-site ready.

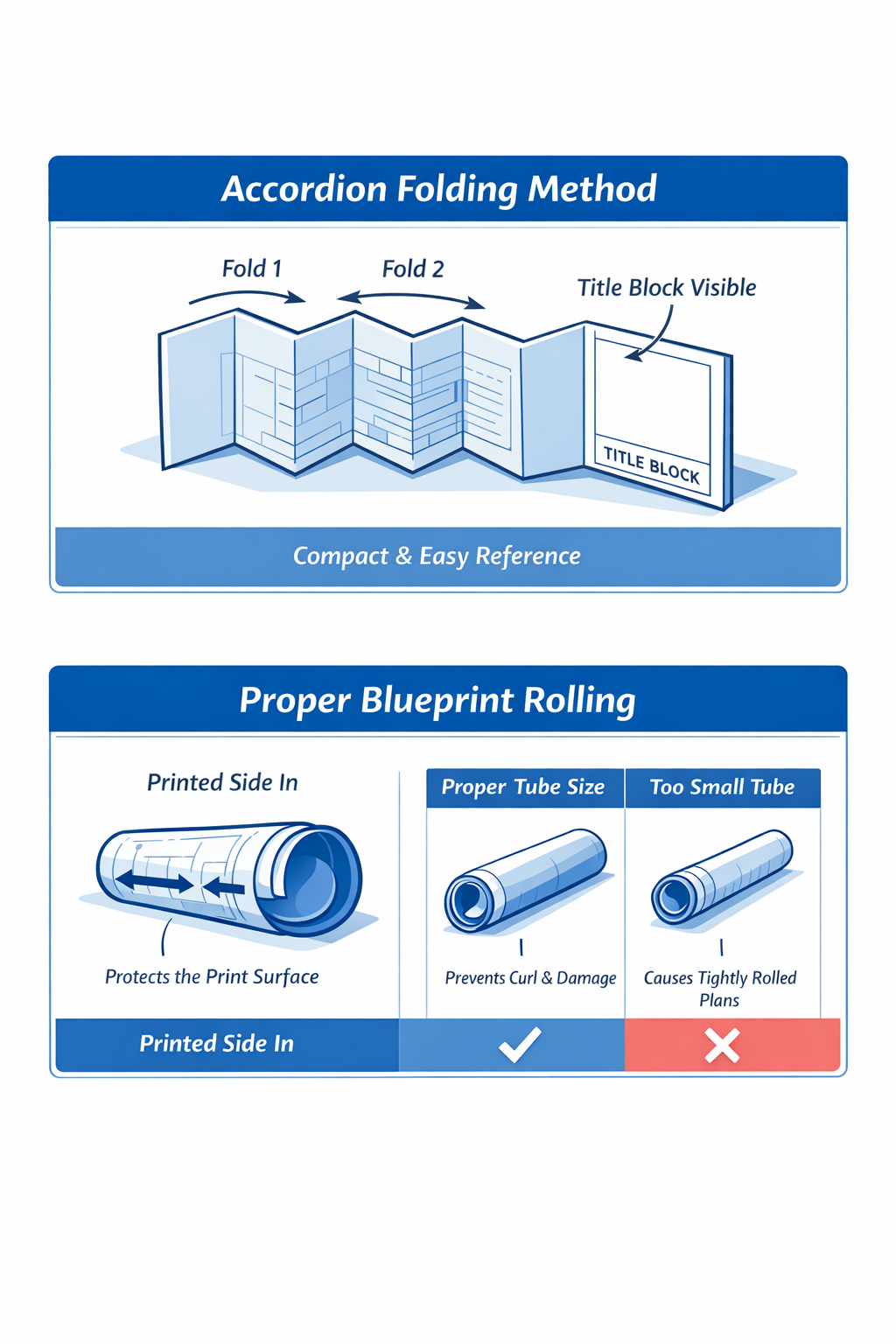

Diagram showing accordion fold method for blueprints versus professional rolling technique for shipping and archiving

Accordion folding method (left) for job-site use vs. professional rolling technique (right) for shipping and archival storage.

Special Case

Blueprints that need to be scanned

Scanning is a common requirement at the end of a project — for as-built documentation, building department record sets, or digital archiving. The condition of the paper significantly affects scan quality.

Why folded blueprints scan poorly

Every fold creates a physical ridge in the paper. On a flatbed scanner, that ridge lifts the paper off the glass surface, creating a shadow line and a gap in the scanned image at every fold location. On a large-format roll scanner, fold creases create irregular tension that causes the paper to track unevenly, producing distorted or skewed output.

Best practice for blueprints that will be scanned

Store all plans that may need scanning as rolled prints, not folded
If you must scan a folded print, lay it flat under a weighted board for 24–48 hours to relax the creases before scanning
Consider ordering a second rolled set specifically for archival purposes

✅

If your project will eventually need as-built scans or a digital archive, order an extra rolled set when you print. At $3.00 per ARCH D sheet, an extra clean archive set is far cheaper than rescanning damaged prints.

Need blueprints printed and shipped today?

Azul Prints rolls every order, packs it in a rigid tube, and ships same-day via UPS on orders before 12 PM EST. ARCH D 24×36 = $3.00/print. All 50 states.

Get Instant Quote →

Frequently Asked Questions

Specific answers to the most common blueprint handling questions.

Should blueprints be folded or rolled?

Roll for shipping, archiving, permit submissions, and client deliverables. Fold only for short-term job-site use where quick field access matters more than long-term preservation. Rolling prevents permanent creases, keeps plans scannable, and is the professional standard for any drawing that will be shipped or submitted.

What is the correct way to fold a blueprint?

Use the accordion fold method. With the sheet face-up in landscape orientation, fold the right edge toward the left in 8–9 inch panels, alternating direction with each fold. Then fold vertically to approximately 9 inches height. The title block should be visible on the top front panel so drawings can be identified without unfolding. For a 24×36 sheet, the folded result is approximately 9×9 inches — fits a standard binder.

What is the correct way to roll a blueprint?

Place the sheet printed-side down. Roll from one short edge, keeping even tension across the width. Maintain a roll diameter of at least 2 inches to avoid curl memory. Secure loosely with a paper band or rubber band — never tightly enough to dent the surface. Store or ship in a rigid tube with end caps. For ARCH D 24×36, use a tube with inner diameter of at least 2 inches and length of at least 25 inches.

Can folded blueprints be scanned?

Technically yes, but the results are often poor. Each fold crease creates a physical ridge that lifts the paper off a flatbed scanner's glass surface, causing shadow lines and gaps in the scanned image. On large-format roll scanners, crease lines create uneven tension and distortion. For best scan quality, blueprints should be stored rolled. If you must scan a folded print, lay it flat under a weighted board for 24–48 hours to partially relax the creases first.

Do building departments require rolled or folded blueprints?

Most US building departments accept both, but many prefer or require rolled submissions because rolled plans are easier to handle, scan, and archive on their end. Some jurisdictions specify rolled submissions in their plan check requirements. Always verify with your specific building department before preparing a permit set. When in doubt, rolled is the safer and more professional choice.

What tube size should be used for rolled blueprints?

For ARCH D (24×36) blueprints, use a tube with an inner diameter of at least 2 inches and a length of at least 25 inches. For ARCH E (36×48), use a tube with inner diameter of at least 3 inches and length of at least 37 inches. Tubes that are too narrow force a tight roll that creates curl memory — a permanent tendency for the paper to curl back even after unrolling. The tube should be rigid (cardboard or plastic) with secure end caps for shipping.

How does Azul Prints ship blueprints?

Azul Prints rolls every order printed-side inward, places it in a rigid mailing tube with secure end caps, and ships via UPS. Orders placed before 12 PM EST on weekdays ship the same day. Shipping options include UPS Ground (free on orders $29+), UPS 3-Day Select, UPS 2nd Day Air, and UPS Next Day Air. All prints arrive rolled and job-site ready.
